Place of Origin: | CHINA |
Brand Name: | ZHENHUA |
Certification: | CE , RoHS |
Model Number: | 2X1.5MM2 |
Minimum Order Quantity: | 5000M |
---|---|
Price: | $0.01-0.1/M |
Packaging Details: | roll , carton, pallent, |
Delivery Time: | according order qty |
Payment Terms: | T/T, Western Union, |
Supply Ability: | 300000M/24h |

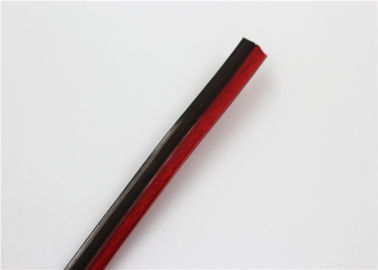

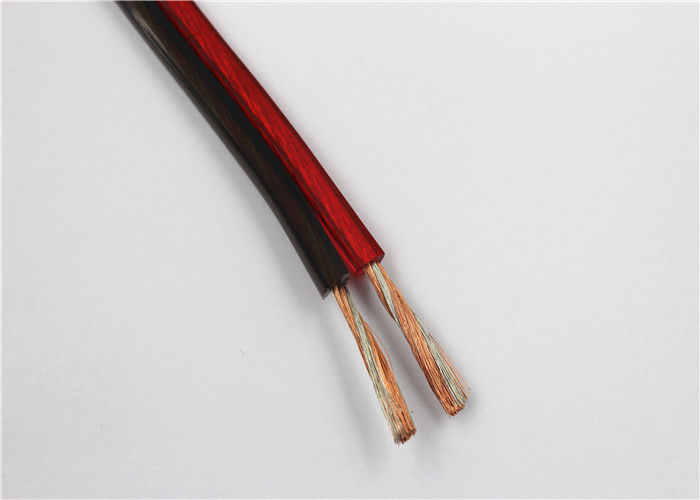

Name: | Red And Black Speaker Wire | Type: | Multi Strand Copper Cable |
---|---|---|---|
Size: | 12 Awg | Material: | Pure Copper, CCA ,TIN COPPER |
Color: | Red/black | Delivery Time: | 30 Days |
Insulation: | Pvc/ PE |
Instructions:
a) Multiple strands of copper line twisted as conductor
b) Transparent PVC insulation / Red and Black PVC Insulation / Black PVC Insulation)
c) Rated voltage: Uo/U is 300/300V
d) Keeping working temperature under 70°C for long-range operation
Specification Size and Technical Data:
Square Size | Specifications | Square Size | Specifications |
0.35mm2 | 2CX20/0.15mm O.D:2.0X4.0 | 24AWG | 2CX18/0.12mm O.D:1.8X3.6 |
0.50mm2 | 2CX28/0.15mm O.D:2.2X.4.4 | 22AWG | 2CX18/0.15mm O.D:2.0X4.0 |
0.75mm2 | 2CX42/0.15mm O.D:2.4X4.8 | 20AWG | 2CX29/0.15mm O.D:2.2X4.4 |
1.0mm2 | 2CX57/0.15mm O.D:3.0X6.0 | 18AWG | 2CX46/0.15mm O.D:2.5X5.0 |
1.5mm2 | 2CX85/0.15mm O.D:3.6X7.2 | 16AWG | 2CX74/0.15mm O.D:3.0X6.0 |
2.5mm2 | 2CX7X20/0.15mm O.D:4.2X8.4 | 14AWG | 2CX118/0.15mm O.D:3.5X7.0 |
4.0mm2 | 2CX7X32/0.15m O.D:5.0X10.0 | 12AWG | 2CX187/0.15mm O.D:4.5X9.0 |
6.0mm2 | 2CX7X48/0.15mm O.D:5.5X11.0 | 10AWG | 2CX297/0.15mm O.D:5.5X11.0 |
Application:
Using to connect power amplifier and loudspeaker equipment, broadcast system to transmit audio frequency signal, which is magnified by power amplifier.
Characteristic:
It can be matched with sound equipment of over high frequency and over low frequency to reach a perfect sound effect, keeping stable for the leaving rhyme and strength of diapason and music. It’s fine and diversified in form.
Product Standard:
Subject to corporate standard
